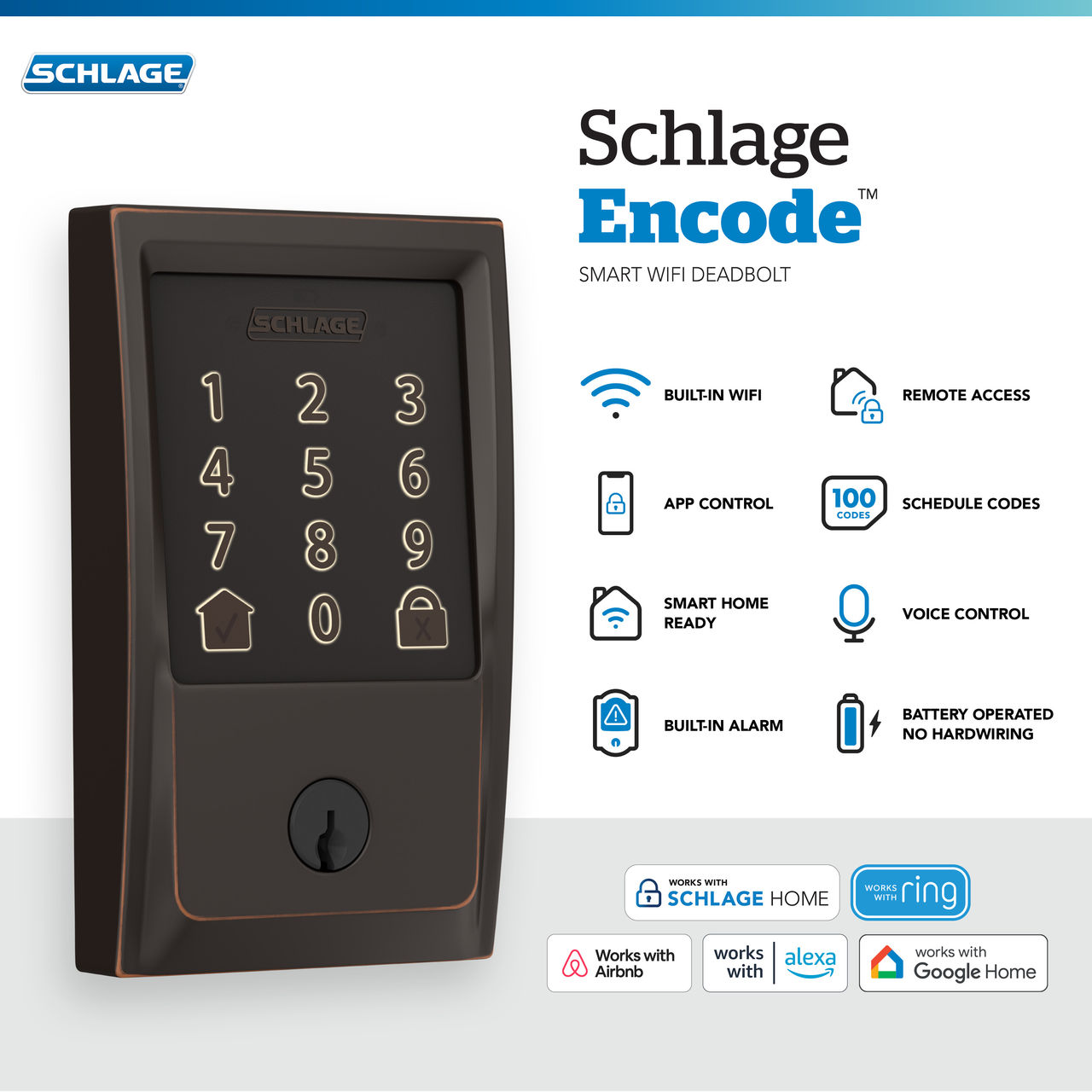

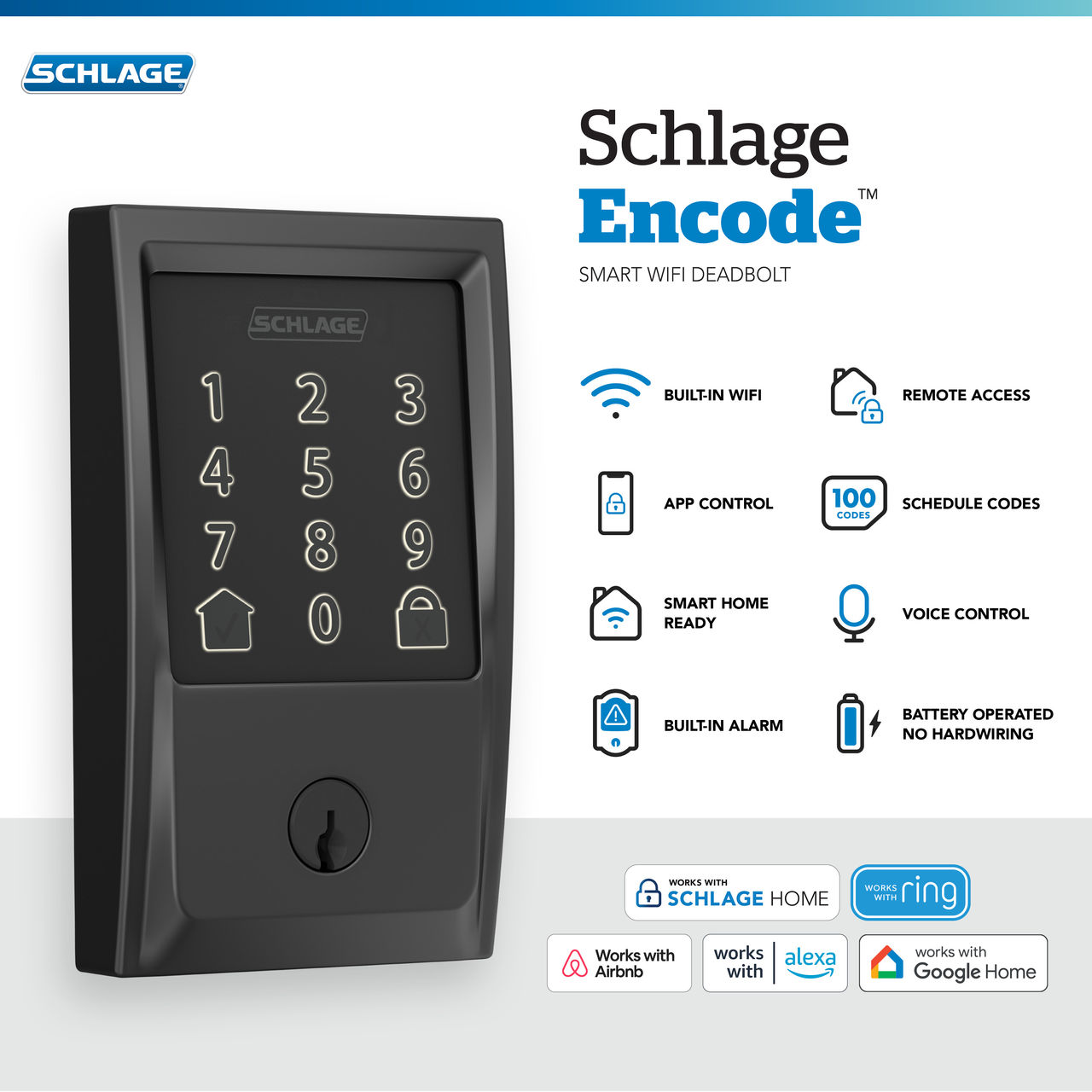

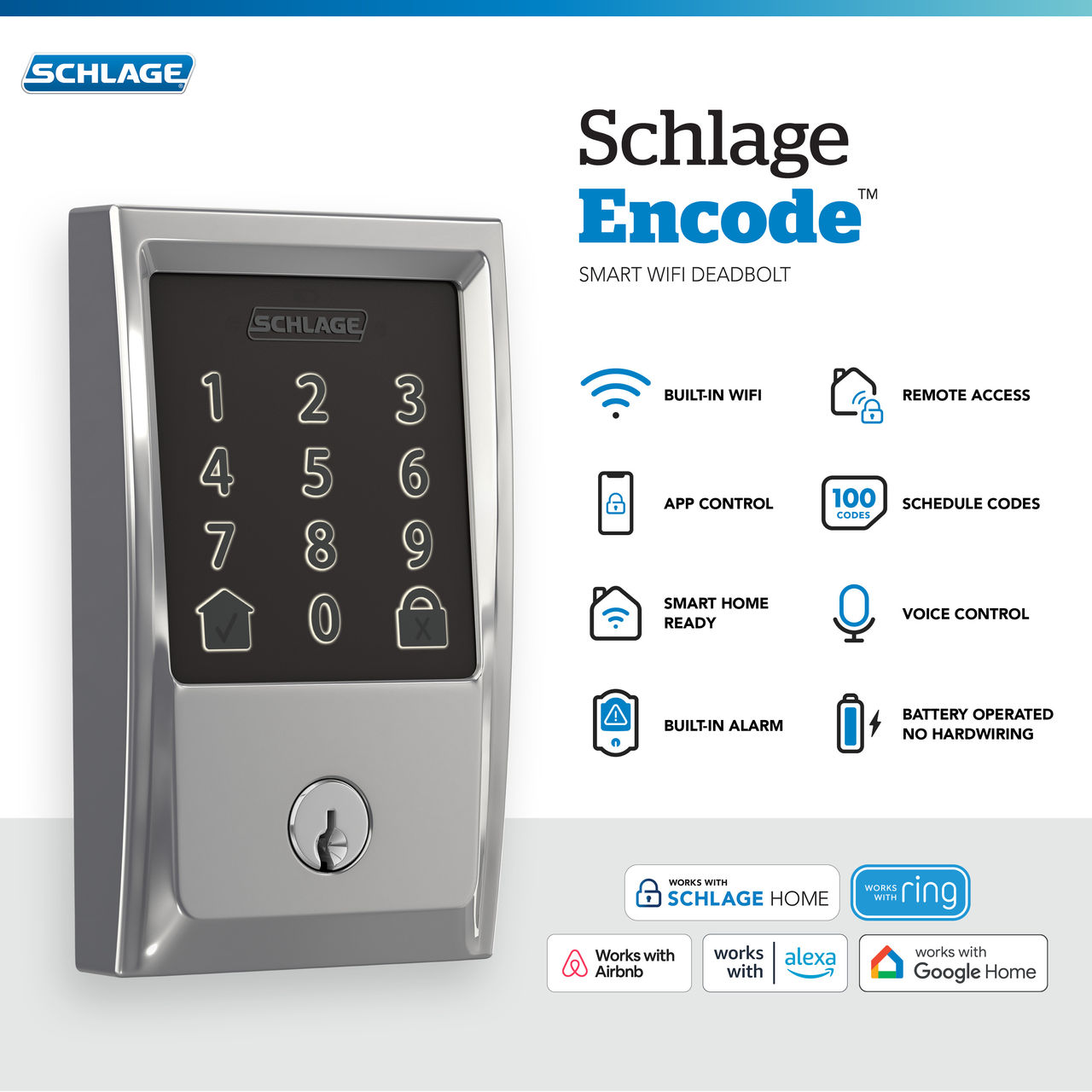

Features

  • Graded Best in Residential Security, Durability, and Finish
  • VOICE CONTROL: Works with Amazon Alexa and Google Assistant for optional, hands-free convenience when paired with the Schlage Home app and a voice enabled device
  • PEACE OF MIND: Lock and unlock from anywhere, manage up to 100 access codes for keyless entry, view lock history, receive customizable notifications and easily manage multiple locks at once - all when paired to the Schlage Home app and connected to a secure WiFi network

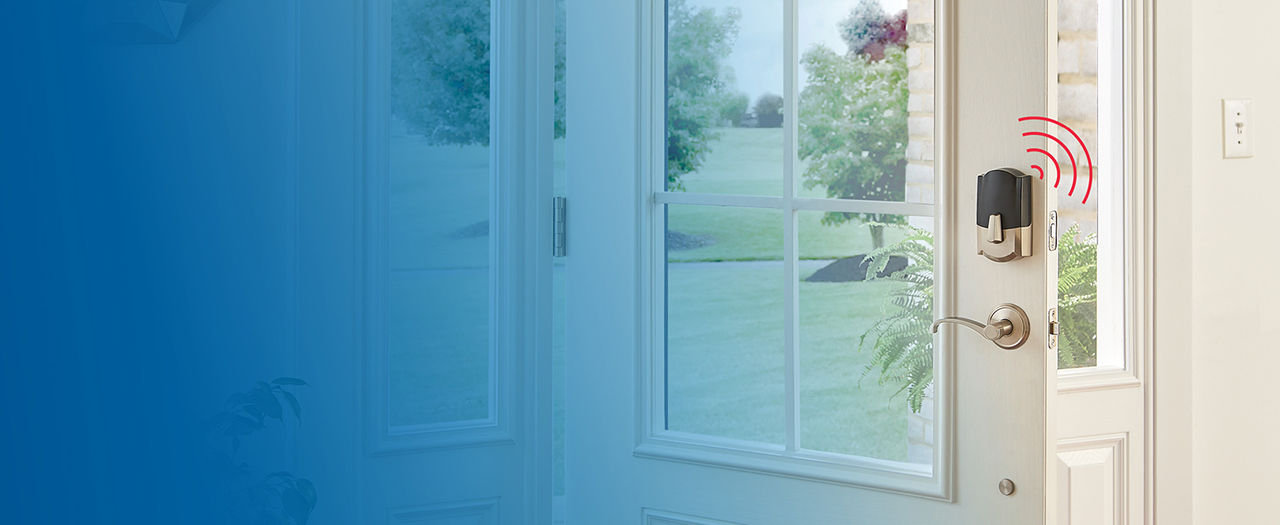

  • ANYWHERE ACCESS: With built-in WiFi compatibility, you can easily and securely connect your Schlage Encode Deadbolt to your home WiFi network to control and monitor your home from anywhere with the Schlage Home app
  • Certified Commercial Grade 1
  • WARRANTY: Limited lifetime mechanical and finish warranty and 3-year electronics warranty, see Schlage warranty for full details

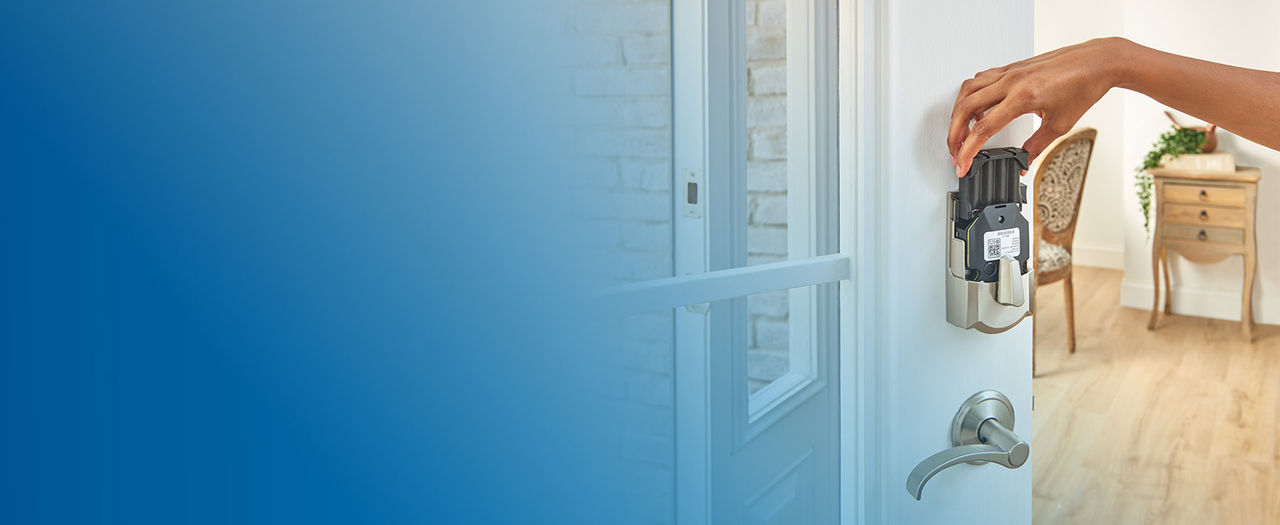

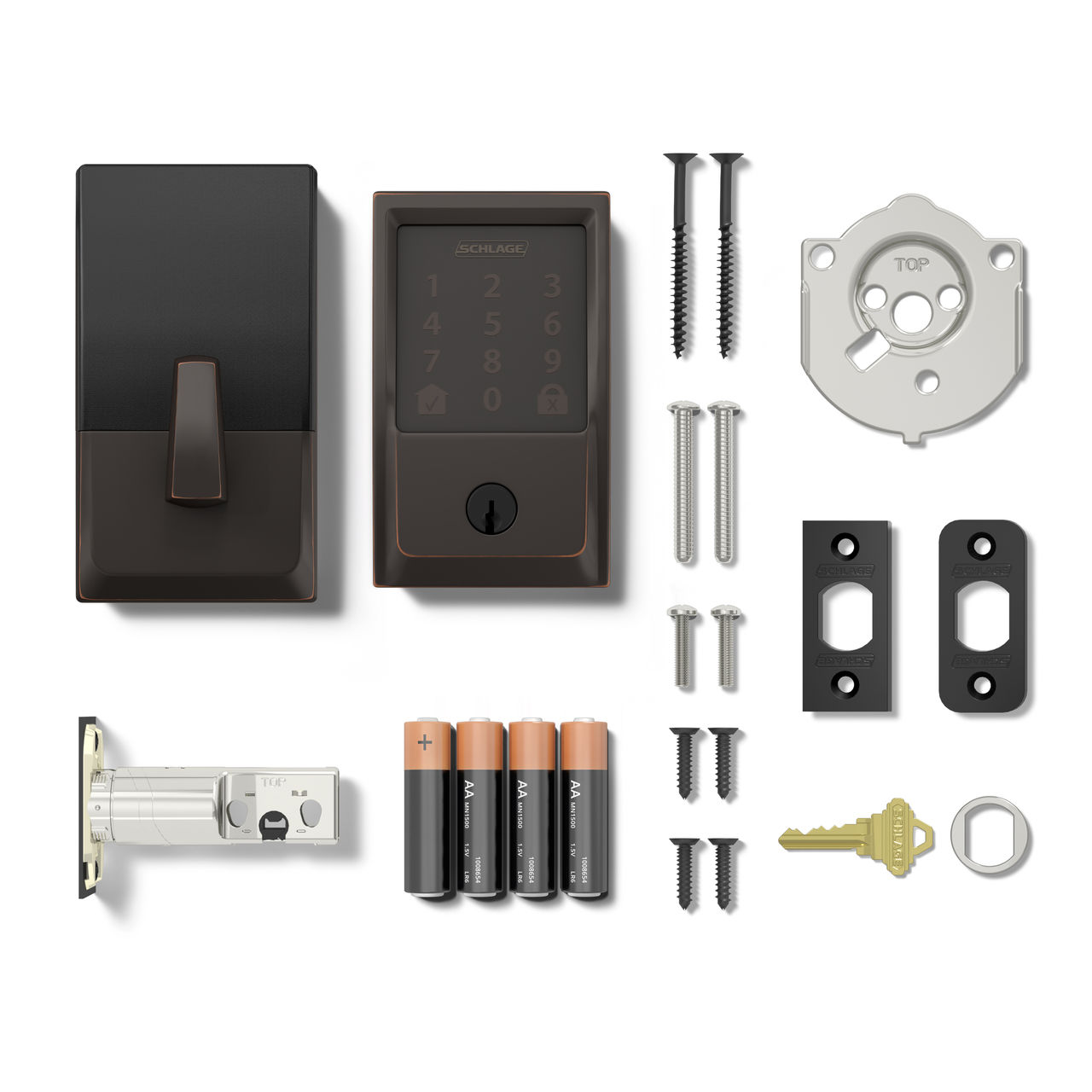

  • BATTERY-OPERATED: Uses four AA batteries-included; up to six months of battery life with typical use; low-battery indicator on lock touchscreen and in Schlage Home app provides advance notice; one physical backup key included
  • COME AND GO WITH EASE: Auto-lock conveniently relocks the door for you and has a variety of time delay options to choose from or can be turned off completely; One-touch locking from the exterior touchscreen makes locking up when leaving easy

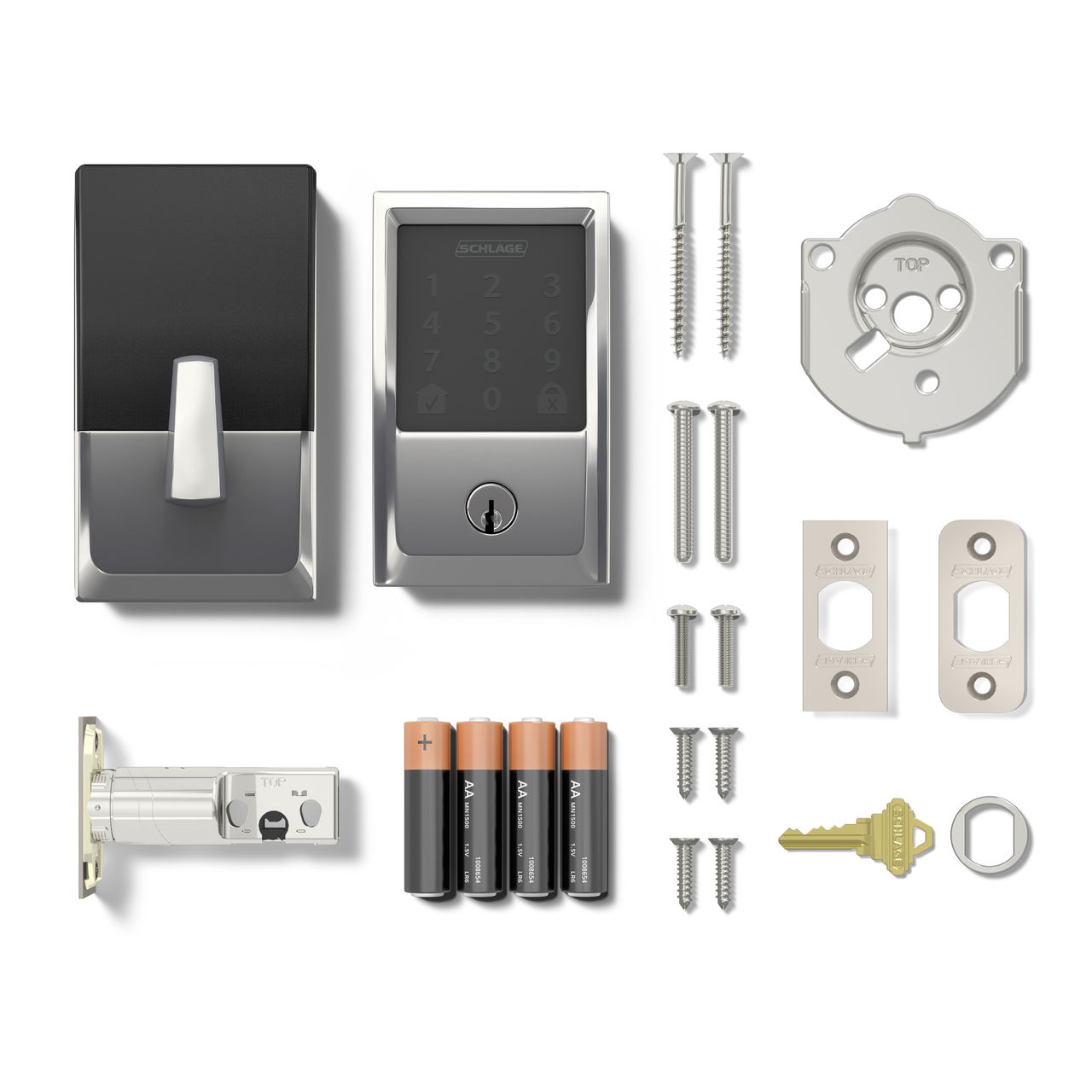

  • EASY INSTALL: Install in minutes with just a screwdriver, no hardwiring required; Snap ‘n Stay design helps keep the lock on the door so both hands are free; fits standard doors with 1-3/8 in to 1-3/4 in door thickness and 2-3/8 in or 2-3/4 in backset

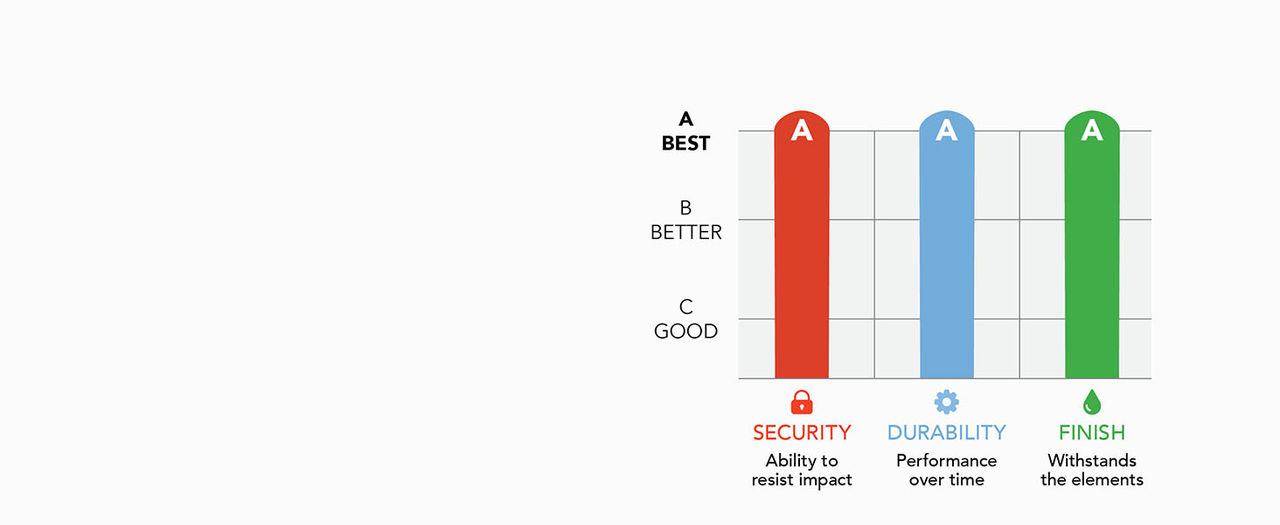

  • ADVANCED SECURITY: Secure, encrypted connection; built-in, customizable alarm for door movement and forced entry attempts; fingerprint-resistant touchscreen; certified highest residential Security, Durability and Finish rating by BHMA industry experts
  • Learn more about grading.

Specifications

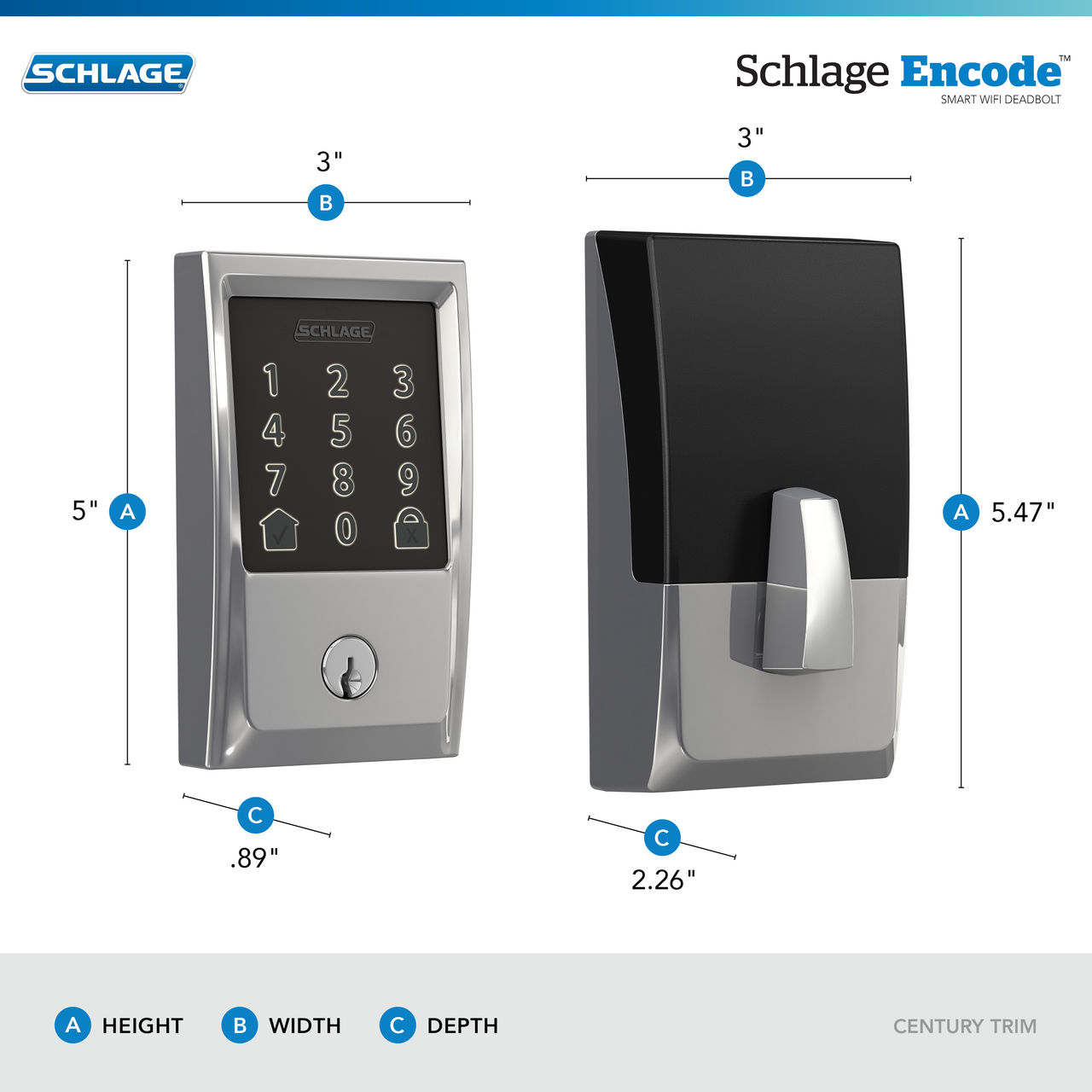

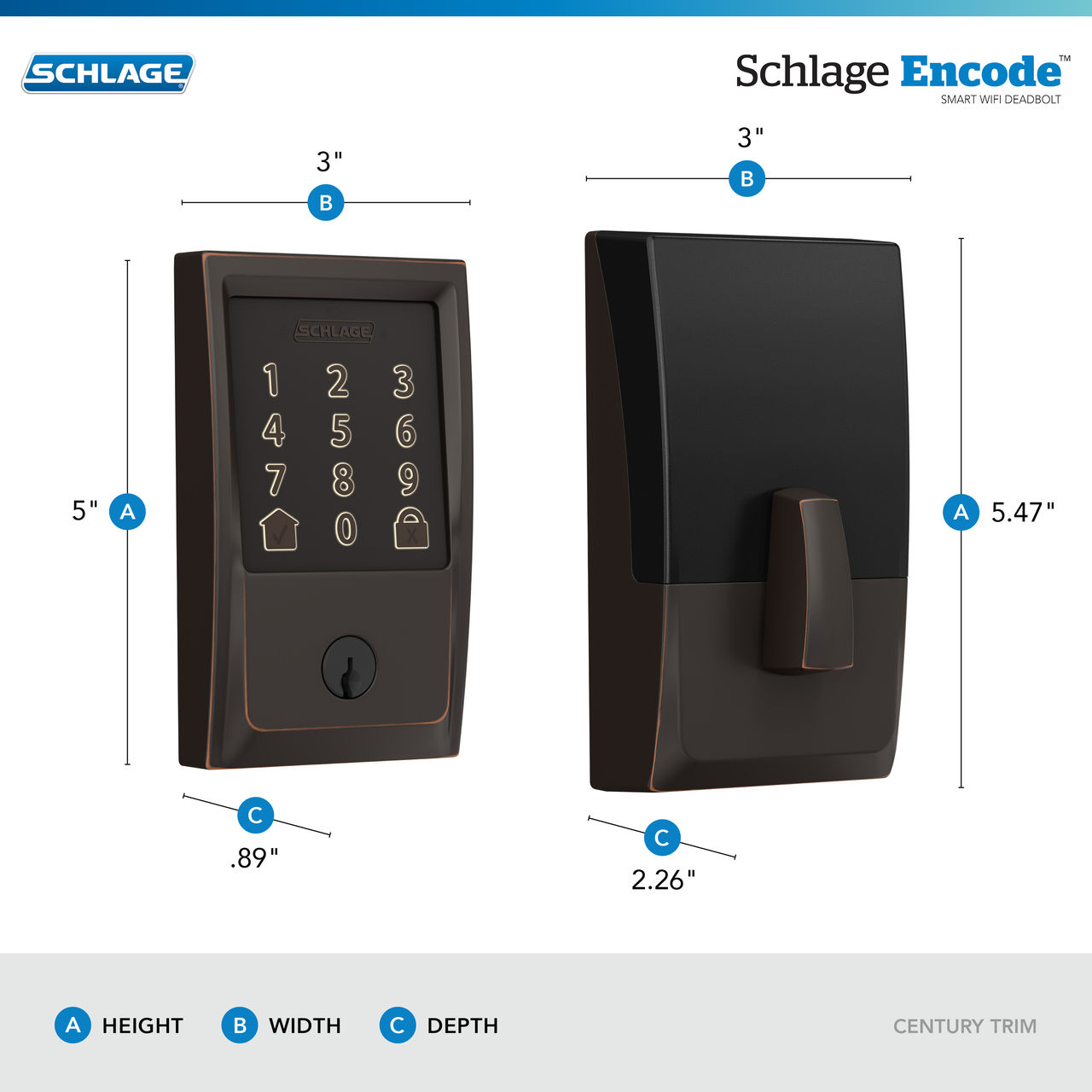

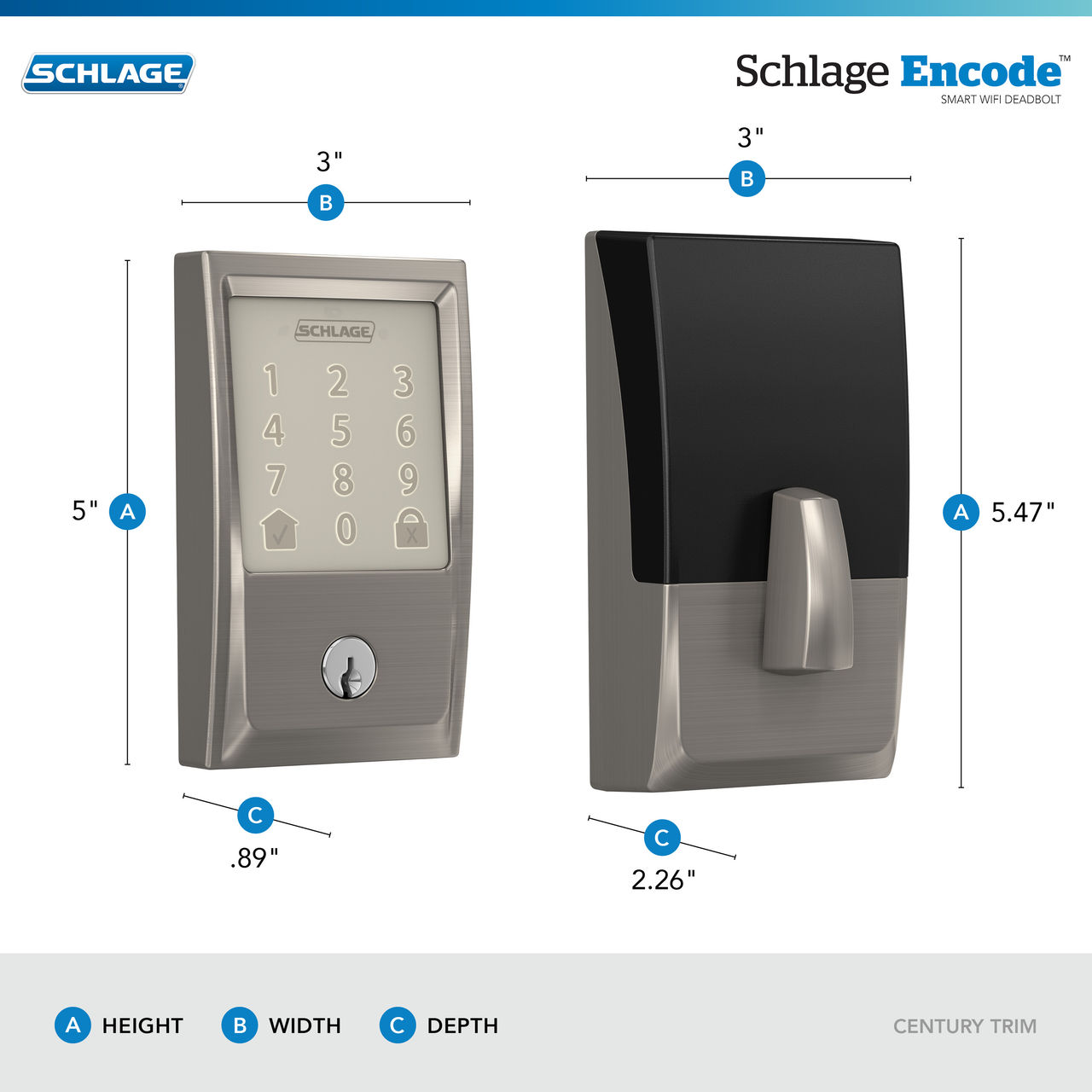

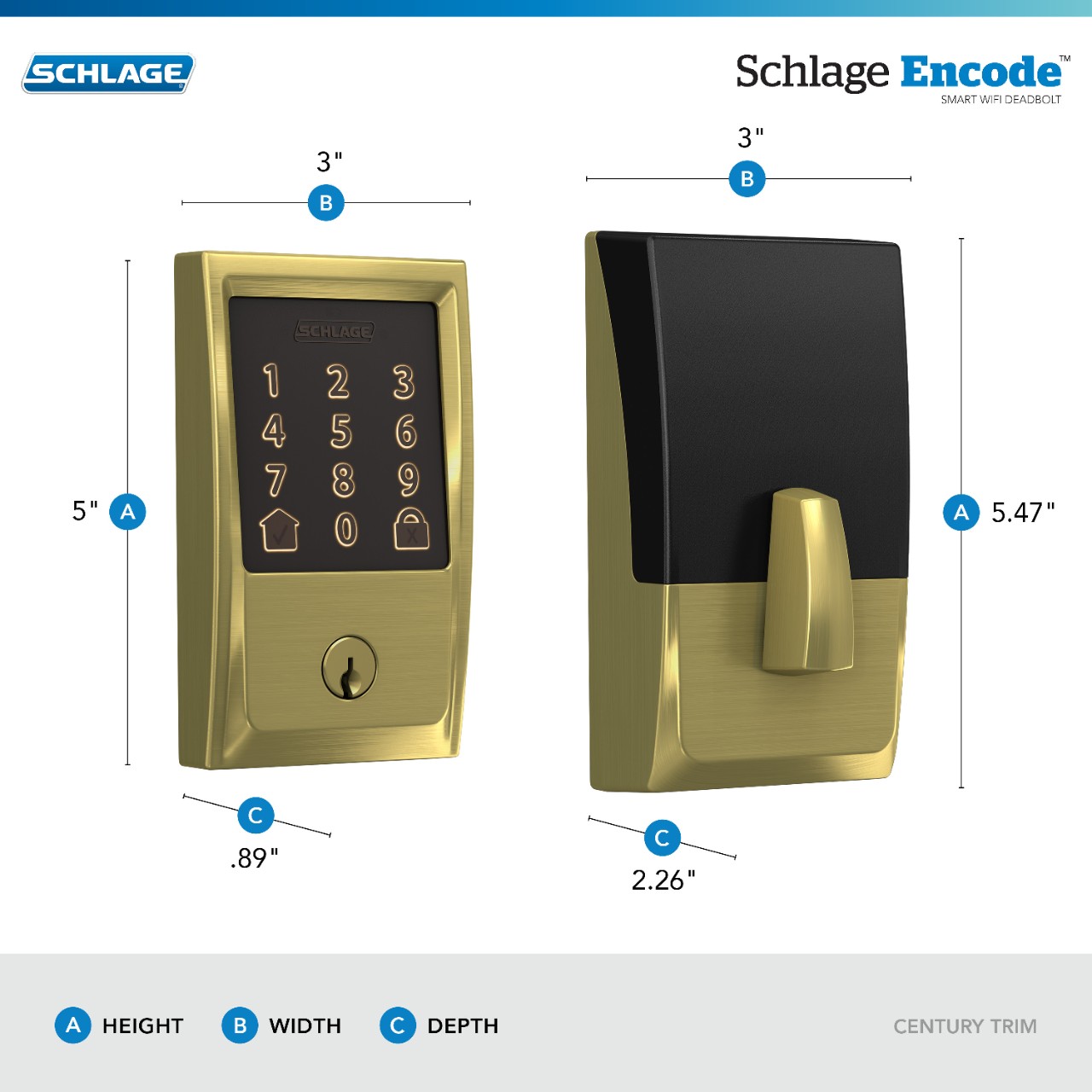

Interior Dimensions3" x 5.5" x 2.2"
Keying5-pin tumbler, C Keyway, 1 key included
CodesPre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 100 code capacity
ADA CompliantYes
Battery Cell TypeUses 4 AA alkaline batteries
Warranty3-Year Electronics Warranty and Limited Lifetime Mechanical and Finish Warranty
Operating TemperaturesOperating Temperatures: Outside escutcheon: -35C to 66C,Inside escutcheon: -10C to 49C
Exterior Dimensions3" x 5" x 0.9"
Backset (in)Universal Backset Adjusts to 2-3/8" (60mm) or 2-3/4" (70mm)
Door Thickness1-3/8 in (35 mm) to 1-3/4 in (45 mm)
WiFi compatibilityWiFi compatibility: requires 2.4GHz WiFi network
Certifications ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
ANSI/BHMA A156.36 Commercial Grade 1
